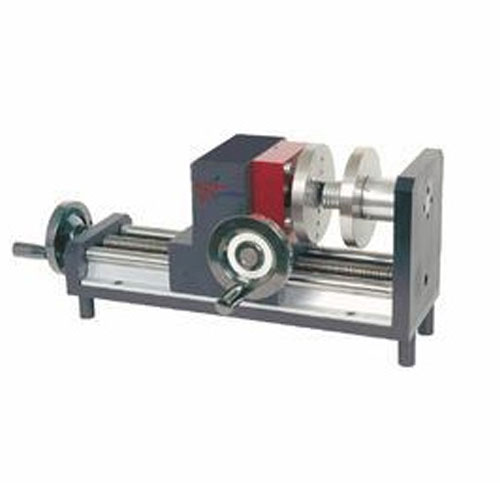

Torsion Spring Testing Machine
Torsion Spring Testing Machine
| Capacity |
5, 10, 20, 50, 100, 200 Nm |
| Type |
Universal, CW and CCW |
| Warranty |
12 months from the date of installation |
| Calibration |
NABL / NPL Calibrated (Optional) |
| Least Count |
0.1 Degree (Deflection) |
| Measuring Units |
Nm, NCm, KgCm selectable |
| Maximum Deflection |
180 Degree |
| Power required |
180 to 260 VAC at 50 Hertz |
| Accuracy |
+ 1 % of the reading |
| Display |
Microcontroller based 6 Digit Digital Display |
| Torque applying |
Through hand operated rotating wheel |
Enquiry
Computerize Spring Testing Machine
We are the leading manufacturer and supplier of Computerize Spring Testing Machine.
| Capacity |
100, 200, 500Kgf |
| Load applying |
Speed controlled Motorized operation |
| Calibration |
NABL / NPL Calibrated (Optional) |
| Speed |
20 mm/min to 200 mm/min, 50 mm/min to 500 mm/min |
| Measuring Units |
N, KN, Kgf (Optional) |
| Least Count |
0.01mm (Deflection) |
| Type |
Universal, Tension & Compression |
| Software |
The windows based software |
| Maximum Deflection |
350mm, 650mm |
| Accuracy |
+ 1% of the reading |
| Power required |
180VAC to 260VAC at 50 Hertz |
| Warranty |
2 months from the date of installation |
Enquiry

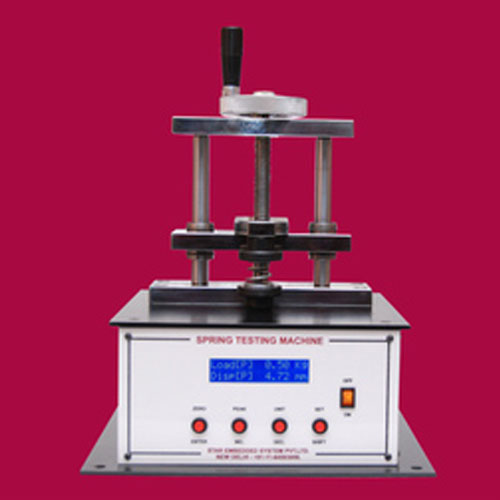

Digital Spring Testing Machine
We are the leading manufacturer and supplier of Digital Spring Testing Machine.
| Capacity |
5 Kgf to 200 Kgf |
| Calibration |
NABL / NPL Calibrated (Optional) |
| Type |
Universal, Tension & Compression |
| Power required |
180VAC to 260VAC at 50 Hertz |
| Least Count |
0.01mm (Deflection) |
| Measuring Units |
N, KN, Kgf (Optional) |
| Load applying |
Through hand operated rotating wheel |
| Maximum Deflection |
300 mm |
| Warranty |
12 months from the date of installation |
| Display |
Microcontroller based 6 Digit Digital Display System & LCD |
| Accuracy |
+ 1% of the reading |
Enquiry
