Load Cell

Our range of products include s type load cell, universal load cell, button loadcell, compression load-cell, bending beam load-cell and compression load cell.

S Type Load Cell

We are Offering S Type Load Cell to our client.

Type	S-Type
Brand	Star Scientific Solution
Usage/Application	Industrial
Design	Robust
Shape	S
Capacity	5 kg to 10 Ton
Material	Alloy Steel
Color	Silver
Maximum Voltage	15 V (DC/AC)

Specifications :

Available Capacities: 5,10,20,30,50,75,100,150,200,300,500,750 kg
Sensitivity: 2.0± 10% mV/V
Non-Linearity: ±0.25% FS
Hysteresis: ±0.02% FS
Repeatability: ±0.01% FS
Creep (20 min): ±0.03% FS
Zero Balance: ±1.0% FS
Zero Temperature Range: ±0.003% FS/°C
Rated Output Temperature Coefficient: ±0.003% FS/°C
Input Resistance: 400 ± 10Ω
Output Resistance: 350 ± 5 Ω
Recommended Voltage: 10 V (DC/AC)
Maximum Voltage: 15 V (DC/AC)
Safe Overload: 150% FS
Ultimate Load: 300% FS
Cable: 5 m
Brand: Star EmbSys
Model: SES - ST

Enquiry

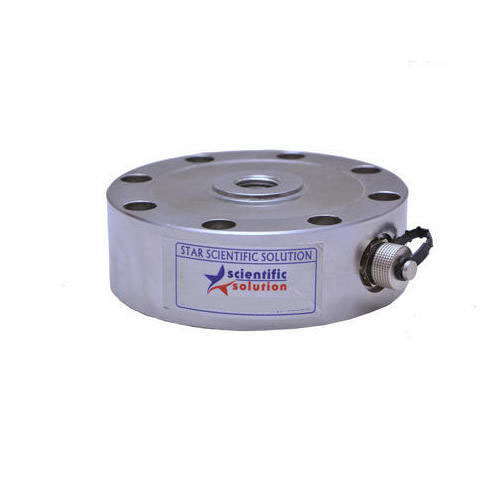

Universal Load Cell

Universal Load-Cell are use in Tension & Compression. This is Very Accuracy Load-Cell.

Minimum Order Quantity	1 Piece
Capacity (Ton)	5 Ton,10 Ton, 20 Ton, 50 Ton, 100 Ton
Warranty	1Year
Model Number	SSS-ULS
Color	Silver
Brand	Star Scientific
Material	Alley- Steel
Maximum Voltage	15 V (DC/AC)

Enquiry

Button Loadcell

Minimum Order Quantity	1 Piece
Brand	Star Scientific Solution
Usage/Application	Industrial
Load Capacity	100 Kg to 5 Ton
Design	Robust
Shape	Round
Capacity	100 Kg to 5 Ton

Enquiry

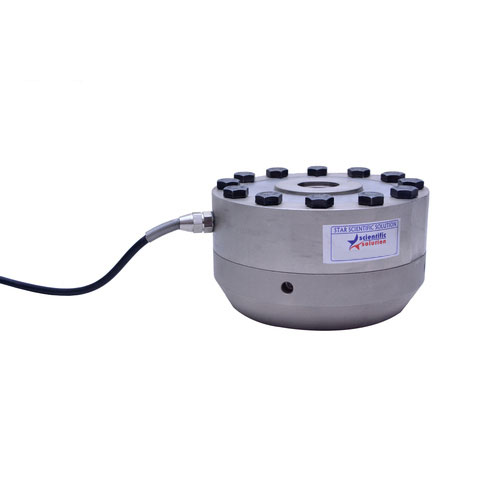

Compression Load-Cell

Minimum Order Quantity	1 1 Nos
Type	Compression Loadcell
Brand	Sensortronics
Usage/Application	Industrial
Load Capacity	30, 40 Ton
Design	Robust
Shape	Round
Capacity	30 Ton
Material	Alloy Steel

Enquiry

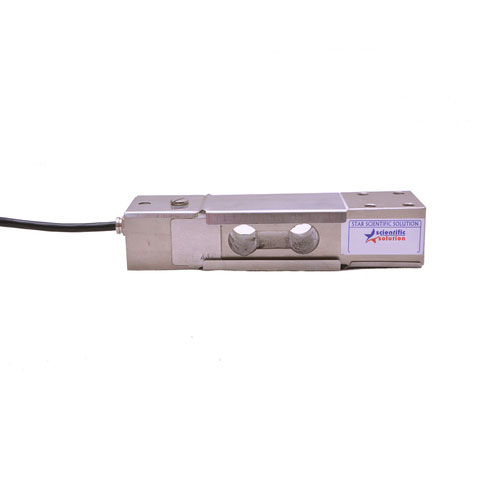

Bending Beam Load-Cell

Minimum Order Quantity	10 Piece
Load Capacity (kg)	10 Kg, 20 Kg, 50 Kg,100 Kg, 200 Kg
Color	Silver
Brand	Sensortronics
Material	Alloy steel

Enquiry

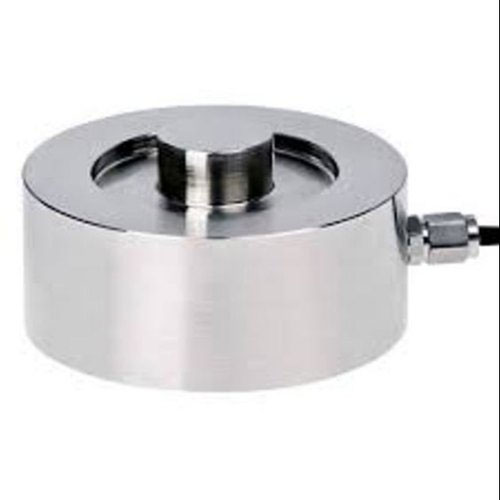

Compression Load Cell

Capacity (kg)	10 Kg, 20 Kg, 50 Kg, 100 Kg, 200 Kg, 500 Kg
Warranty	1 Year
Brand	SSS- CL
Material	Alley-Steel

Enquiry

Universal Load Cell

Maximum Voltage	15 V (DC/AC)

Specification :

Capacity:0.05,0.01,0.2,,0.3,0.5,0.75,1.1,2.3,5,10,20,30,50,75,100,150,200,250,300,500
Sensitivity: 2.0± 10% mV/V
Non Linearity: ±0.05% FS
Hysteresis: ±0.05% FS
Repeatability: ±0.03% FS
Creep(20 min): ±0.03% FS
Zero Balance: ±1.0% FS
Zero Temperature Range: ±0.05% FS/°C
Rated Output Temperature Coefficient: ±0.05% FS/°C
Input Resistance: 400 ± 10Ω
Output Resistance: 350± % 5Ω
Recommended Voltage: 10 V (DC/AC)
Maximum Voltage: 15 V (DC/AC)
Safe Overload: 150% FS
Ultimate Load: 300% FS
Cable: 5 m
